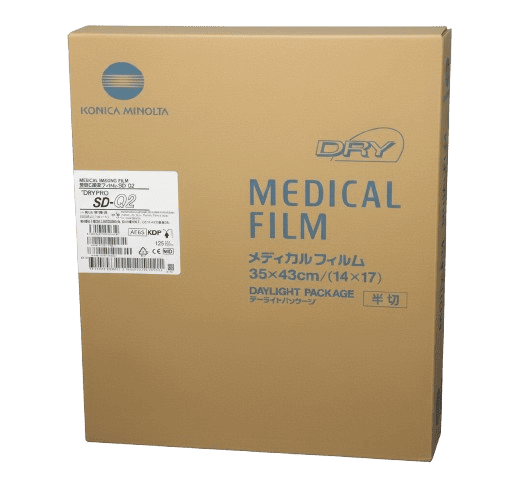

The SD-Q2 thermally processed dry film delivers excellent image quality for all types of medical imaging modalities, including CT, MRI, CR, DR, and others. With optimized control of image tones, SD-Q2 ensures sharp and clear images essential for accurate diagnostics.

Advantages of SD-Q2:

• High Image Quality: Provides linear gradations from low to high-density areas, enhancing diagnostic clarity.
• Convenient Packaging: Daylight packaging makes handling the film easy. Available sizes: 14×17 inches, 14×14 inches, 11×14 inches, 10×12 inches, 8×10 inches. Each box contains 125 sheets.
• Compatibility: Perfectly compatible with Laser Imager DRYPRO873/832.

Storage and Handling Conditions:

1. Storage and Handling of Unexposed Film:

• Store in a cool, dry, and dark place at a recommended temperature of 10~25°C in the original packaging.
• Allow the film to reach room temperature before use to prevent condensation.

2. Storage and Handling of Processed Film:

• Store processed film in a cool, dry, and dark place. For long-term storage, use the original packaging or other protective envelopes at temperatures up to 25°C.
• Avoid high temperatures and strong light as they can cause increased density and discoloration.
• Do not leave the film exposed to direct sunlight or on a viewing box for extended periods. Avoid using heat-emitting devices like overhead projectors.
• Do not clean the film with alcohol, cleaning agents, or water to prevent density blotching and other defects. Avoid handling with wet hands.
• Store films separately to prevent sticking in high humidity environments.

Dry Film Image Formation:

1. A latent image is recorded in the silver halides of the film through laser exposure.
2. During thermal development, silver ions from organic silver oxide emulsions form the developed silver image.

Conclusion: SD-Q2 is a reliable solution for medical imaging, providing high-quality images and ease of handling. Suitable for a wide range of medical modalities and perfectly compatible with the Laser Imager DRYPRO873/832. With proper storage and handling, SD-Q2 ensures long-term image quality preservation.

20 x 25 cm (8 x 10 inch),

25 x 30 cm (10 x 12 inch),

28 x 35 cm (11 x 14 inch),

35 x 43 cm(14 x 17 inch)

Konica Minolta SD-Q Film for Medical Printers (Multi-Format Cameras) Konica MINOLTA DRYPRO 832 and DRYPRO 873 provide high quality images through optimized halftone control (displays up to 16384 grayscale) and has a special sharpening technology (resolution – 320dpi).

special packaging, the film can be loaded in daylight. Format 35×43 cm (14 “x17”) is universal, as it can be used for printing tomographic images (CT, MRI), and for printing X-ray images of small size – the printer allows you to place up to 35 images of various formats on one sheet.

20 x 25 cm (8 x 10 inch),

25 x 30 cm (10 x 12 inch),

28 x 35 cm (11 x 14 inch),

35 x 43 cm(14 x 17 inch)

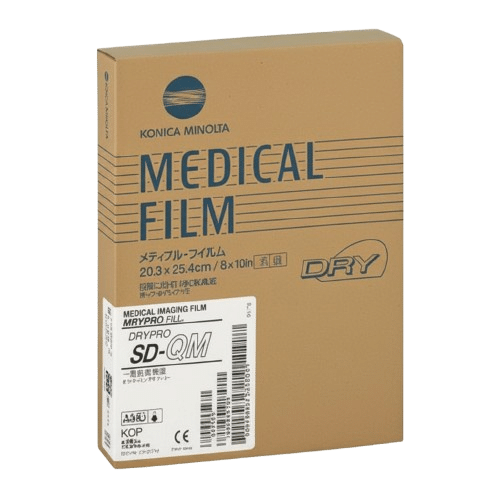

The SD-QM line of dry laser films are specifically designed for the DRYPRO 800* laser series. The film is thermally processed and does not require wet processing chemistry. SD-QM is designed for mammography applications in the DRYPRO 873 laser imager only.

20 x 25 cm ( 8 x 10 in) ,

25 x 30 cm (10 x 12 in)
